Thirty Years of Education and Research on Nuclear Many-Body Physics at the ECT*; from traditional Methods to Quantum Computing and Machine Learning

Morten Hjorth-Jensen
Department of Physics and Astronomy and FRIB, Michigan State University, USA, and Department of Physics and Center for Computing in Science Education, University of Oslo, Norway

30th anniversary ECT*, October 4, 2023












What is this talk about?

The main emphasis is to give you a short and pedestrian introduction to the whys and hows we can use (with several examples) machine learning methods in nuclear physics. And why this could (or should) be of interest. And how this can be linked with standard many-body theories. And perhaps some quantum computing.

I will also try to highlight educational initiatives and strategies where the ECT* has played and will/can play an important role in educating the next generation of nuclear scientists

Additional info

Parts of this talk are based on Artificial Intelligence and Machine Learning in Nuclear Physics, Amber Boehnlein et al., Reviews Modern of Physics 94, 031003 (2022)











Thanks to many

Jane Kim (MSU), Julie Butler (MSU), Patrick Cook (MSU), Danny Jammooa (MSU), Daniel Bazin (MSU), Dean Lee (MSU), Witek Nazarewicz (MSU), Michelle Kuchera (Davidson College), Even Nordhagen (UiO), Robert Solli (UiO, Expert Analytics), Bryce Fore (ANL), Alessandro Lovato (ANL), Stefano Gandolfi (LANL), Francesco Pederiva (UniTN), and Giuseppe Carleo (EPFL). Niyaz Beysengulov and Johannes Pollanen (experiment, MSU); Zachary Stewart, Jared Weidman, and Angela Wilson (quantum chemistry, MSU) Jonas Flaten, Oskar, Leinonen, Øyvind Sigmundson Schøyen, Stian Dysthe Bilek, and Håkon Emil Kristiansen (UiO). Marianne Bathen and Lasse Vines (experiments (UiO). Excuses to those I have omitted.











The first postdocs and long-term visitors, 1994-1996











One of the first many-body workshops, summer 1997















Educational mission and strategic initiatives











The Nuclear TALENT initiative

Training in Advanced Low Energy Nuclear Theory, aims at providing an advanced and comprehensive training to graduate students and young researchers in low-energy nuclear theory. The initiative is a multinational network between several Asian, European and Northern American institutions and aims at developing a broad curriculum that will provide the platform for a cutting-edge theory for understanding nuclei and nuclear reactions.

These objectives are met by offering series of lectures, commissioned from experienced teachers in nuclear theory. The educational material generated under this program will be collected in the form of WEB-based courses, textbooks, and a variety of modern educational resources. No such all-encompassing material is available at present; its development will allow dispersed university groups to profit from the best expertise available.

The ECT* and the INT have played central roles here.











The first ever Nuclear Talent course, ECT*, summer 2012















The second Nuclear Talent course at the ECT*, summer 2014















The second Nuclear Talent course at the ECT*, summer 2014















Nuclear Talent course summer 2017















Nuclear Talent course summer 2018 in China















Talent courses since 2019, ECT* playing a central role

  1. Nuclear TALENT course From Quarks and Gluons to Nuclear Forces and Structure, ECT*, 15 July 2019 — 02 August 2019
  2. Nuclear TALENT School on Machine learning from 22 June 2020 to 03 July 2020, ECT* (online).
  3. Nuclear TALENT School on Machine learning from 19 July 2021 to 30 July 2021, ECT* (online).

Many lectures from DTPs and Talent courses were collected in a Lecture Notes in Physics (volume 936, see https://link.springer.com/book/10.1007/978-3-319-53336-0)











Educational strategies

The ECT* should continue to play a key role in educating the next generation of nuclear scientists.

  1. Through the organization of DTPs and possibly nuclear Talent courses
  2. Be at the forefront in introducing new theoretical developments to nuclear physics (now for example quantum computing and AI/Machine learning)
  3. Foster and care for PDs and their careers, develop career plans with European universities and national laboratories, for example larger training networks with selected laboratories and universities.
  4. Similarly, in collaboration with universities, develop training networks in nuclear theory at the PhD level and possibly also master level. This has probably to be done in collaboration with universities.
  5. Develop regional, national, European and international initiatives that encompass the above










And new initiatives

Introducing the Lattice Virtual Academy (LaVA) by Claudio Bonanno et al, see for example https://indico.fnal.gov/event/57249/contributions/271752/attachments/169437/227392/talk_LaVA_Bonanno.pdf.

Under development within STRONG-2020 EU-funded project and technical and financial support by FBK/ECT and by INFN.











Machine learning. A simple perspective on the interface between ML and Physics















ML in Nuclear Physics















AI/ML and some statements you may have heard (and what do they mean?)

  1. Fei-Fei Li on ImageNet: map out the entire world of objects (The data that transformed AI research)
  2. Russell and Norvig in their popular textbook: relevant to any intellectual task; it is truly a universal field (Artificial Intelligence, A modern approach)
  3. Woody Bledsoe puts it more bluntly: in the long run, AI is the only science (quoted in Pamilla McCorduck, Machines who think)

If you wish to have a critical read on AI/ML from a societal point of view, see Kate Crawford's recent text Atlas of AI

Here: with AI/ML we intend a collection of machine learning methods with an emphasis on statistical learning and data analysis









Scientific Machine Learning

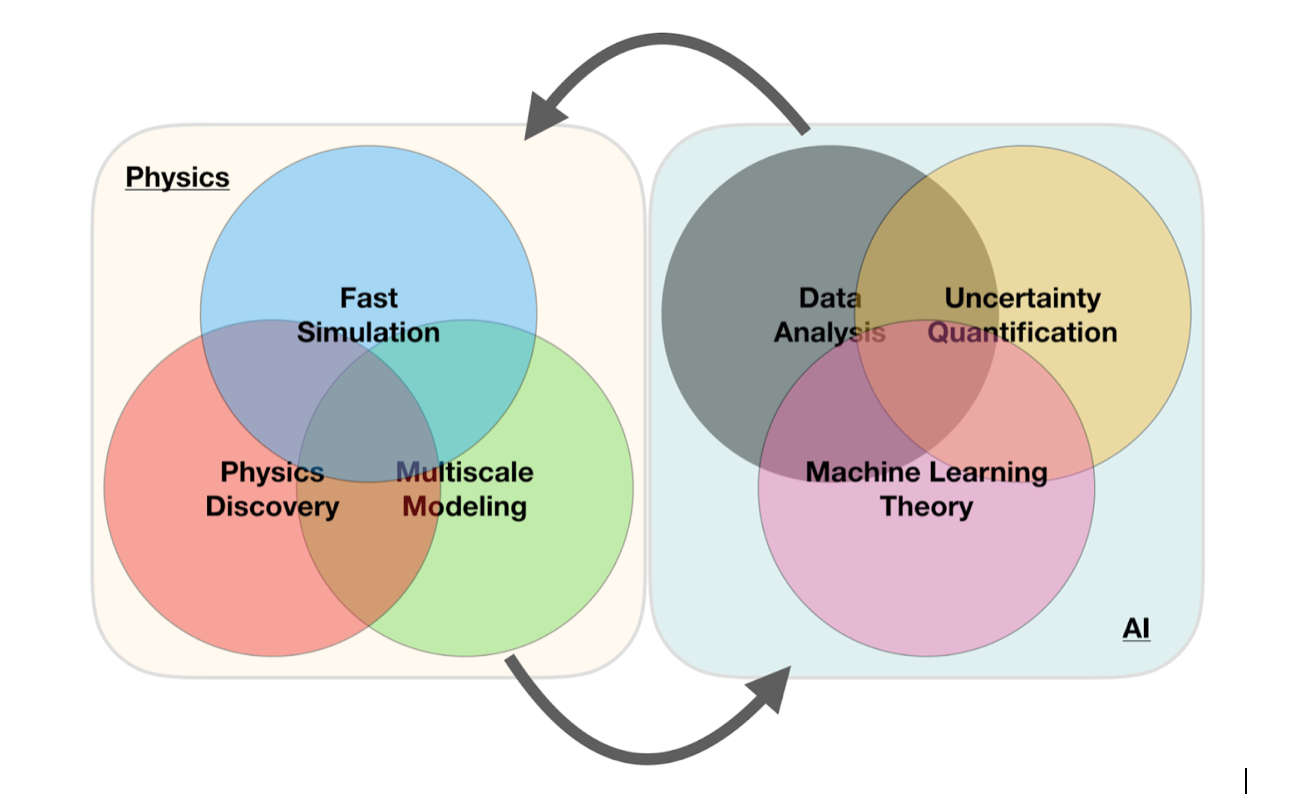

An important and emerging field is what has been dubbed as scientific ML, see the article by Deiana et al Applications and Techniques for Fast Machine Learning in Science, arXiv:2110.13041

The authors discuss applications and techniques for fast machine learning (ML) in science – the concept of integrating power ML methods into the real-time experimental data processing loop to accelerate scientific discovery. The report covers three main areas

  1. applications for fast ML across a number of scientific domains;
  2. techniques for training and implementing performant and resource-efficient ML algorithms;
  3. and computing architectures, platforms, and technologies for deploying these algorithms.










Types of machine learning

The approaches to machine learning are many, but are often split into two main categories. In supervised learning we know the answer to a problem, and let the computer deduce the logic behind it. On the other hand, unsupervised learning is a method for finding patterns and relationship in data sets without any prior knowledge of the system. Some authours also operate with a third category, namely reinforcement learning. This is a paradigm of learning inspired by behavioural psychology, where learning is achieved by trial-and-error, solely from rewards and punishment.











Main categories

Another way to categorize machine learning tasks is to consider the desired output of a system. Some of the most common tasks are:











Machine learning and nuclear theory (my bias): Why?

  1. ML tools can help us to speed up the scientific process cycle and hence facilitate discoveries
  2. Enabling fast emulation for big simulations
  3. Revealing the information content of measured observables w.r.t. theory
  4. Identifying crucial experimental data for better constraining theory
  5. Providing meaningful input to applications and planned measurements
  6. ML tools can help us to reveal the structure of our models
  7. Parameter estimation with heterogeneous/multi-scale datasets
  8. Model reduction
  9. ML tools can help us to provide predictive capability
  10. Theoretical results often involve ultraviolet and infrared extrapolations due to Hilbert-space truncations
  11. Uncertainty quantification essential
  12. Theoretical models are often applied to entirely new nuclear systems and conditions that are not accessible to experiment










The plethora of machine learning algorithms/methods

  1. Deep learning: Neural Networks (NN), Convolutional NN, Recurrent NN, Boltzmann machines, autoencoders and variational autoencoders and generative adversarial networks
  2. Bayesian statistics and Bayesian Machine Learning, Bayesian experimental design, Bayesian Regression models, Bayesian neural networks, Gaussian processes and much more
  3. Dimensionality reduction (Principal component analysis), Clustering Methods and more
  4. Ensemble Methods, Random forests, bagging and voting methods, gradient boosting approaches
  5. Linear and logistic regression, Kernel methods, support vector machines and more
  6. Reinforcement Learning
  7. Generative models and more










Examples of Machine Learning methods and applications in nuclear physics











Examples of Machine Learning methods and applications in nuclear physics, continues











More examples

The large amount of degrees of freedom pertain to both theory and experiment in nuclear physics. With increasingly complicated experiments that produce large amounts data, automated classification of events becomes increasingly important. Here, deep learning methods offer a plethora of interesting research avenues.











And more











Selected references











What are the basic ingredients?

Almost every problem in ML and data science starts with the same ingredients:

We seek to minimize the function \( \mathcal{C} (\mathbf{x}, f(\mathbf{\alpha})) \) by finding the parameter values which minimize \( \mathcal{C} \). This leads to various minimization algorithms. It may surprise many, but at the heart of all machine learning algortihms there is an optimization problem.











Argon-46 by Solli et al., NIMA 1010, 165461 (2021)

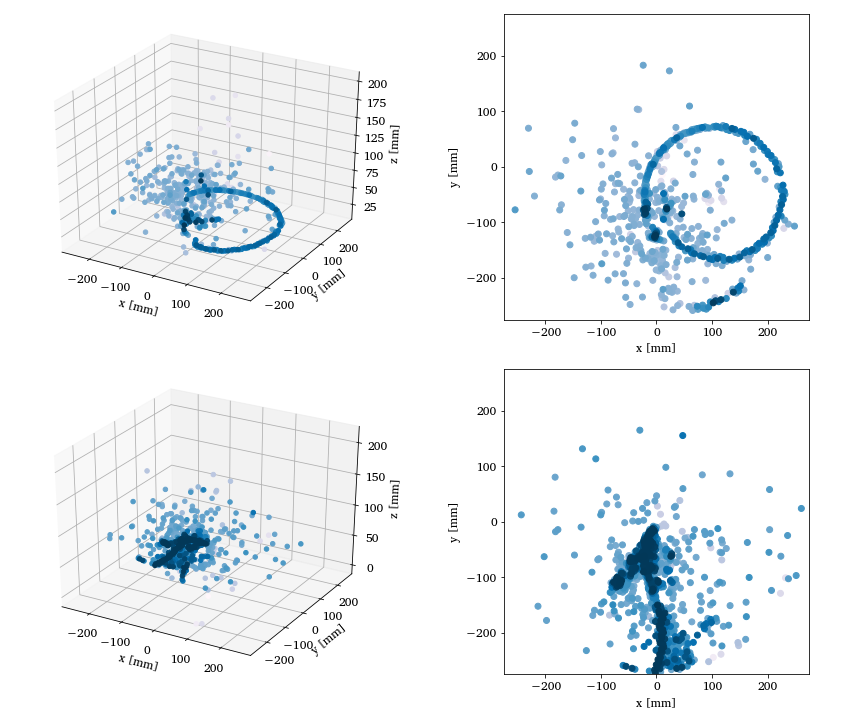

Representations of two events from the Argon-46 experiment. Each row is one event in two projections, where the color intensity of each point indicates higher charge values recorded by the detector. The bottom row illustrates a carbon event with a large fraction of noise, while the top row shows a proton event almost free of noise.















Many-body physics, Quantum Monte Carlo and deep learning

Given a hamiltonian \( H \) and a trial wave function \( \Psi_T \), the variational principle states that the expectation value of \( \langle H \rangle \), defined through

$$ \langle E \rangle = \frac{\int d\boldsymbol{R}\Psi^{\ast}_T(\boldsymbol{R})H(\boldsymbol{R})\Psi_T(\boldsymbol{R})} {\int d\boldsymbol{R}\Psi^{\ast}_T(\boldsymbol{R})\Psi_T(\boldsymbol{R})}, $$

is an upper bound to the ground state energy \( E_0 \) of the hamiltonian \( H \), that is

$$ E_0 \le \langle E \rangle. $$

In general, the integrals involved in the calculation of various expectation values are multi-dimensional ones. Traditional integration methods such as the Gauss-Legendre will not be adequate for say the computation of the energy of a many-body system. Basic philosophy: Let a neural network find the optimal wave function











Monte Carlo methods and Neural Networks

Machine Learning and the Deuteron by Kebble and Rios and Variational Monte Carlo calculations of \( A\le 4 \) nuclei with an artificial neural-network correlator ansatz by Adams et al.

Adams et al: $$ \begin{align} H_{LO} &=-\sum_i \frac{{\vec{\nabla}_i^2}}{2m_N} +\sum_{i < j} {\left(C_1 + C_2\, \vec{\sigma_i}\cdot\vec{\sigma_j}\right) e^{-r_{ij}^2\Lambda^2 / 4 }} \nonumber\\ &+D_0 \sum_{i < j < k} \sum_{\text{cyc}} {e^{-\left(r_{ik}^2+r_{ij}^2\right)\Lambda^2/4}}\,, \label{_auto1} \end{align} $$

where \( m_N \) is the mass of the nucleon, \( \vec{\sigma_i} \) is the Pauli matrix acting on nucleon \( i \), and \( \sum_{\text{cyc}} \) stands for the cyclic permutation of \( i \), \( j \), and \( k \). The low-energy constants \( C_1 \) and \( C_2 \) are fit to the deuteron binding energy and to the neutron-neutron scattering length

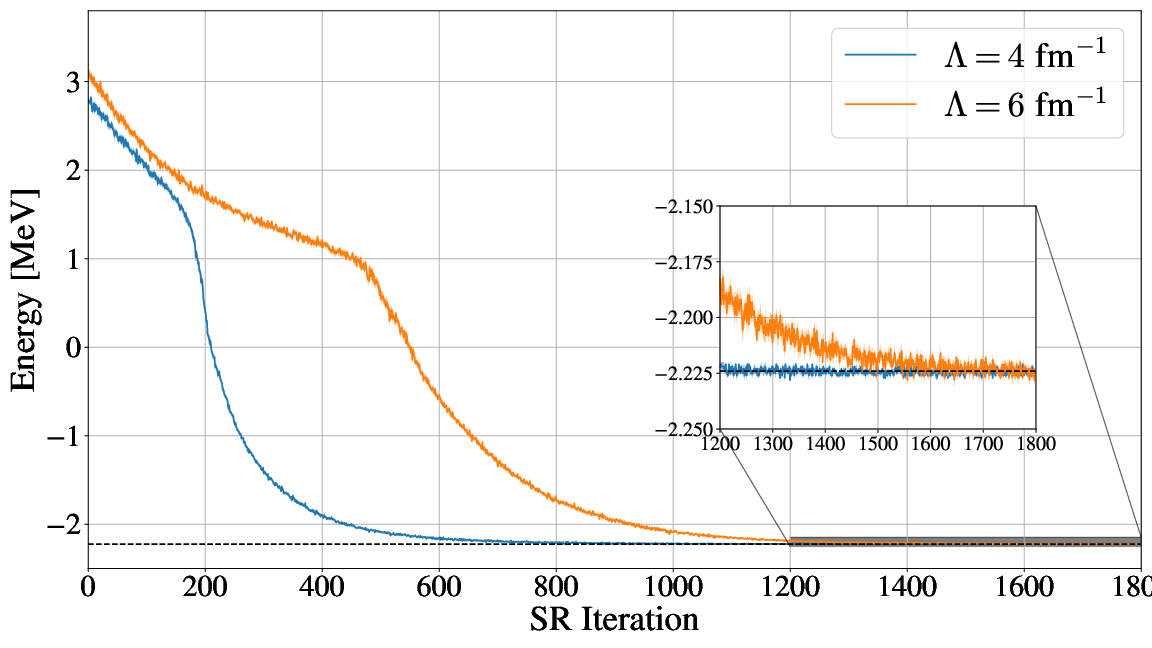

Deep learning neural networks, Variational Monte Carlo calculations of \( A\le 4 \) nuclei with an artificial neural-network correlator ansatz by Adams et al.

An appealing feature of the neural network ansatz is that it is more general than the more conventional product of two- and three-body spin-independent Jastrow functions

$$ \begin{align} |\Psi_V^J \rangle = \prod_{i < j < k} \Big( 1-\sum_{\text{cyc}} u(r_{ij}) u(r_{jk})\Big) \prod_{i < j} f(r_{ij}) | \Phi\rangle\,, \label{_auto2} \end{align} $$

which is commonly used for nuclear Hamiltonians that do not contain tensor and spin-orbit terms. The above function is replaced by a four-layer Neural Network.











Explicit results

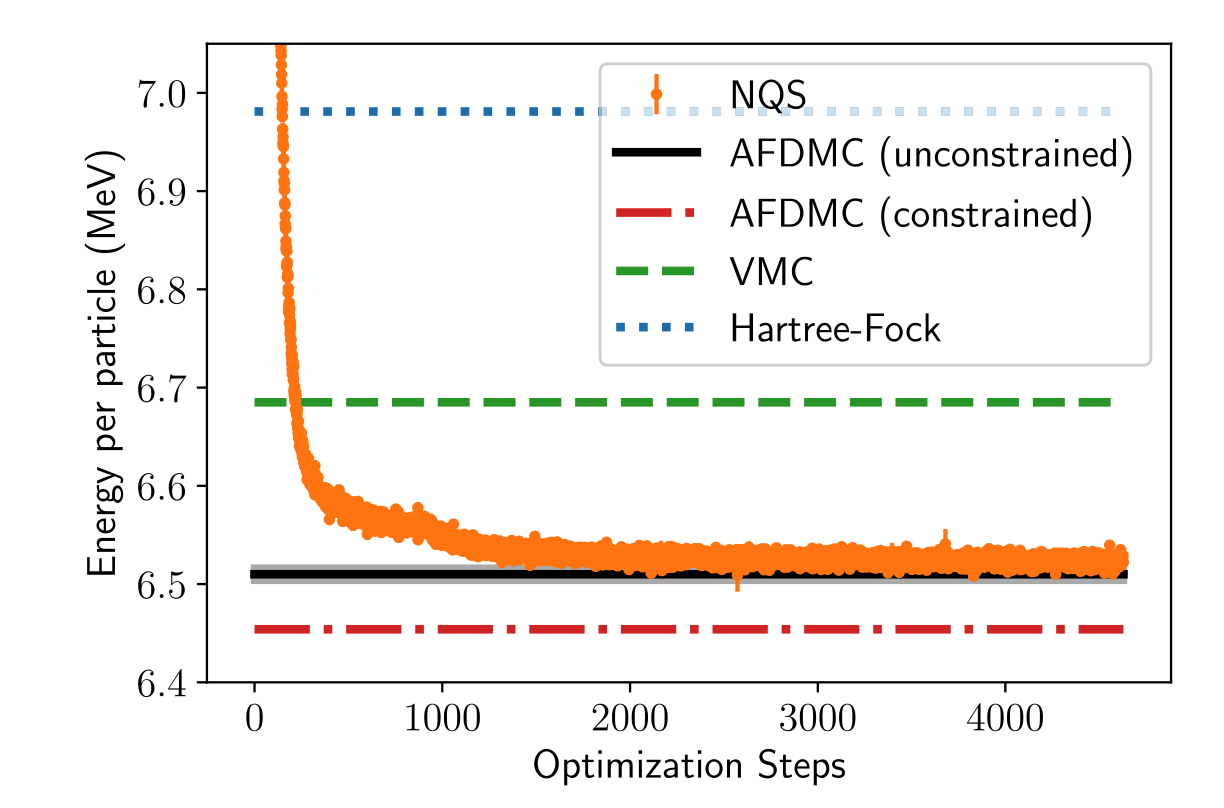

Dilute neutron star matter from neural-network quantum states by Fore et al, Physical Review Research 5, 033062 (2023) at density \( \rho=0.04 \) fm$^{-3}$

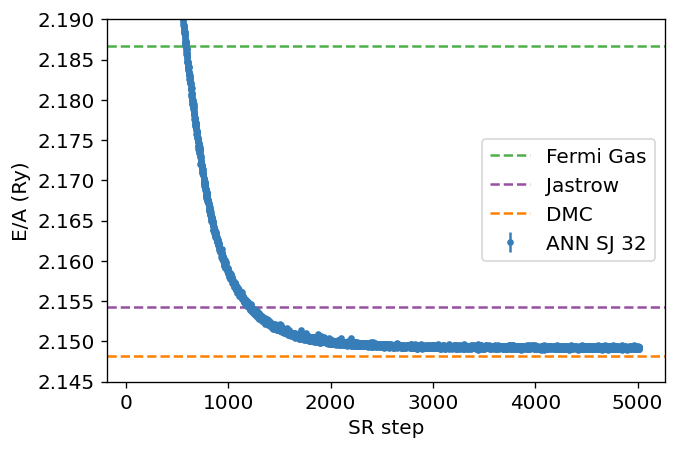

The electron gas in three dimensions with \( N=14 \) electrons (Wigner-Seitz radius \( r_s=2 \) a.u.), Gabriel Pescia, Jane Kim et al. arXiv.2305.07240,















Efficient solutions of fermionic systems using artificial neural networks, Nordhagen et al, Frontiers in Physics 11, 2023

The Hamiltonian of the quantum dot is given by

$$ \hat{H} = \hat{H}_0 + \hat{V}, $$

where \( \hat{H}_0 \) is the many-body HO Hamiltonian, and \( \hat{V} \) is the inter-electron Coulomb interactions. In dimensionless units,

$$ \hat{V}= \sum_{i < j}^N \frac{1}{r_{ij}}, $$

with \( r_{ij}=\sqrt{\mathbf{r}_i^2 - \mathbf{r}_j^2} \).

This leads to the separable Hamiltonian, with the relative motion part given by (\( r_{ij}=r \))

$$ \hat{H}_r=-\nabla^2_r + \frac{1}{4}\omega^2r^2+ \frac{1}{r}, $$

plus a standard Harmonic Oscillator problem for the center-of-mass motion. This system has analytical solutions in two and three dimensions (M. Taut 1993 and 1994).

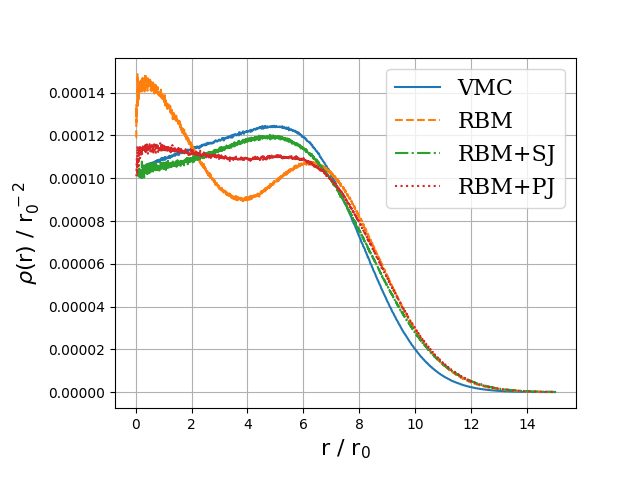

Quantum dots and Boltzmann machines, onebody densities \( N=6 \), \( \hbar\omega=0.1 \) a.u.

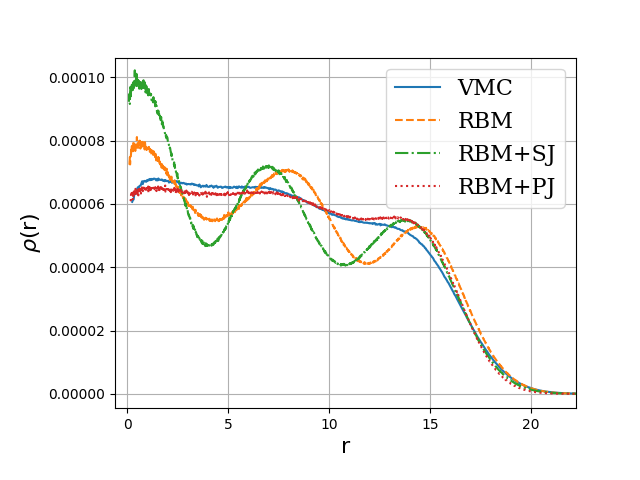

Onebody densities \( N=30 \), \( \hbar\omega=1.0 \) a.u.

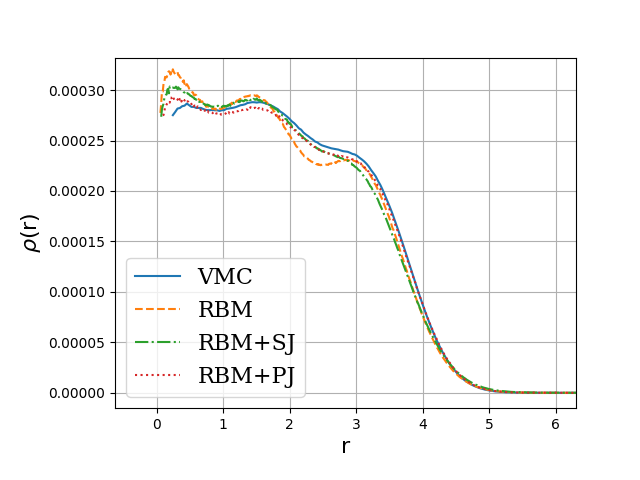

Onebody densities \( N=30 \), \( \hbar\omega=0.1 \) a.u.















Quantified limits of the nuclear landscape

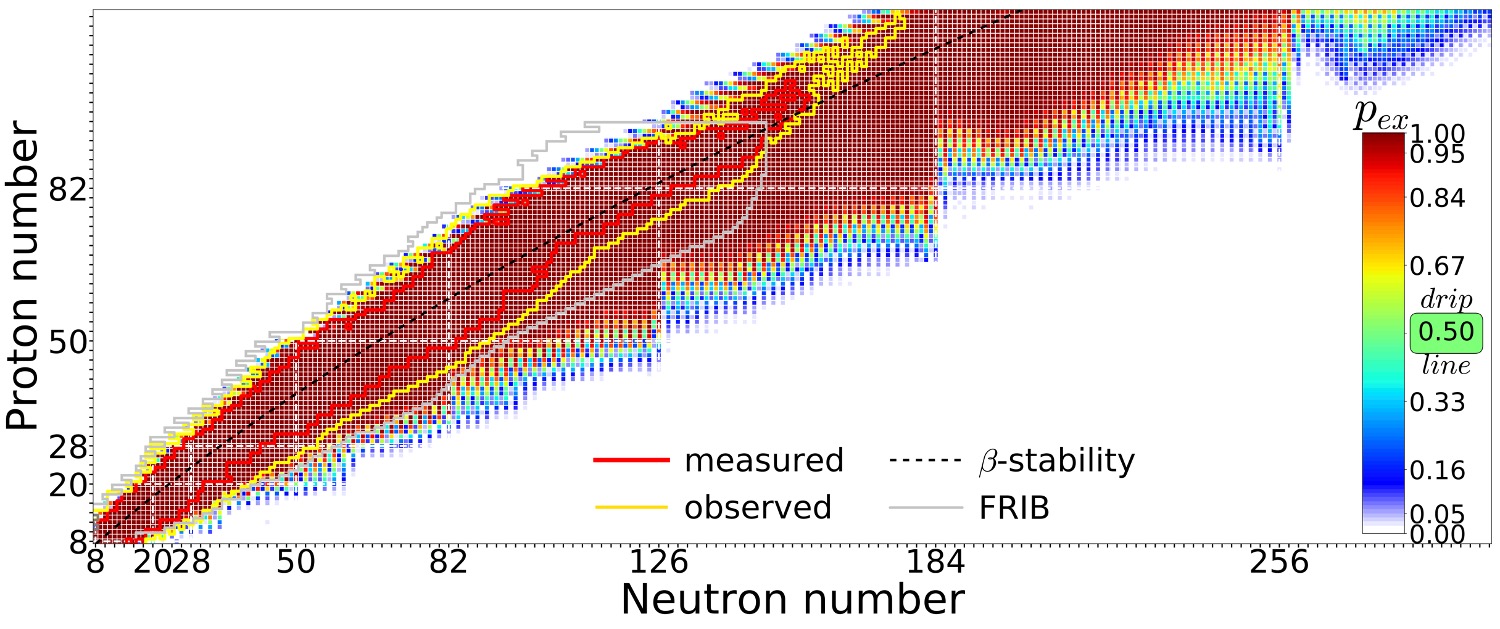

Neufcourt et al., Phys. Rev. C 101, 044307 (2020)

Predictions made with eleven global mass model and Bayesian model averaging















Constraining the equation of state for dense nuclear matter

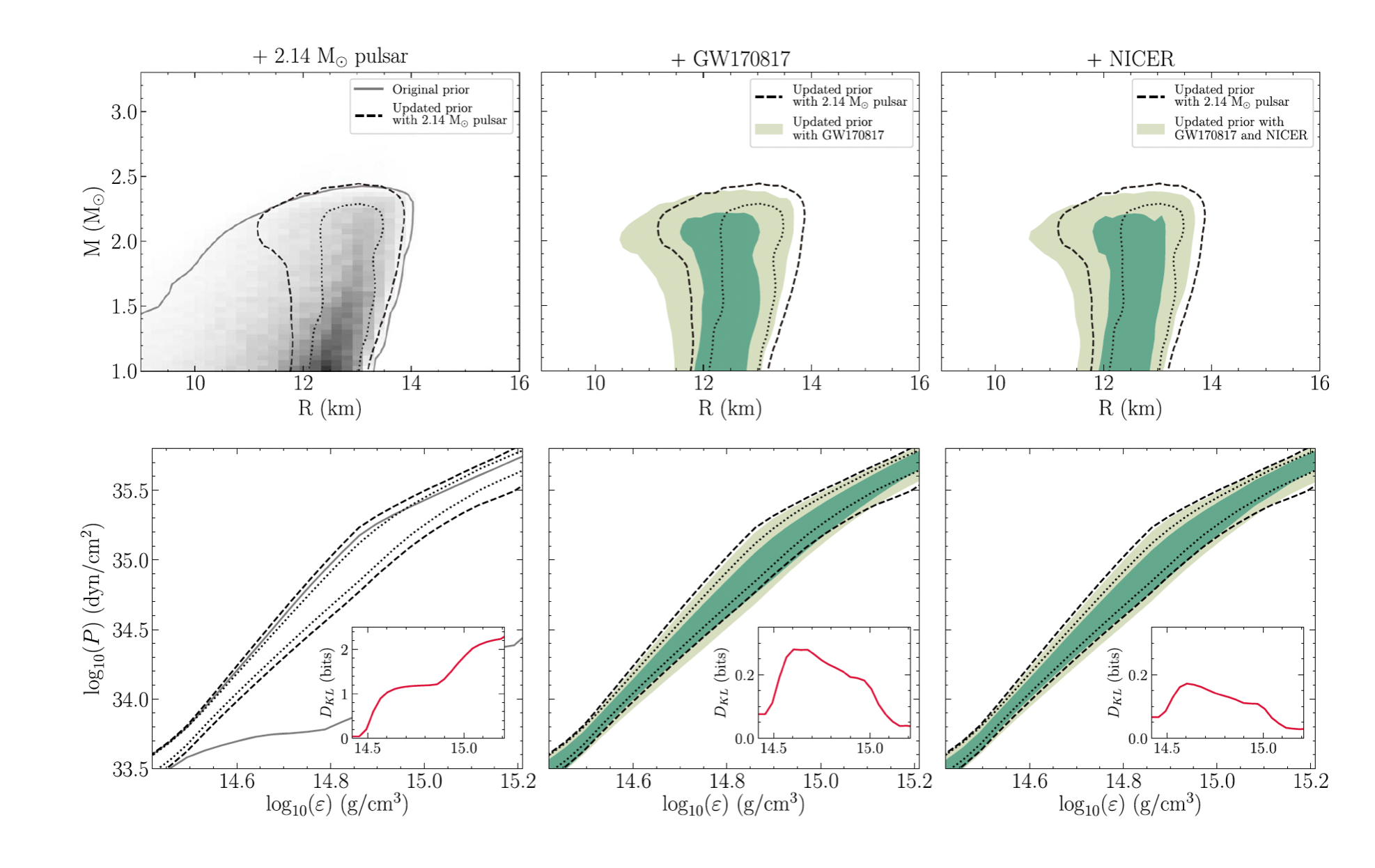

G. Raaijmakers et al., Constraining the Dense Matter Equation of State with Joint Analysis of NICER and LIGO/Virgo Measurements, AJ Letters, 893, L21 (2020)













Experimental design

Beam time and compute cycles are expensive!











Observations and perspectives

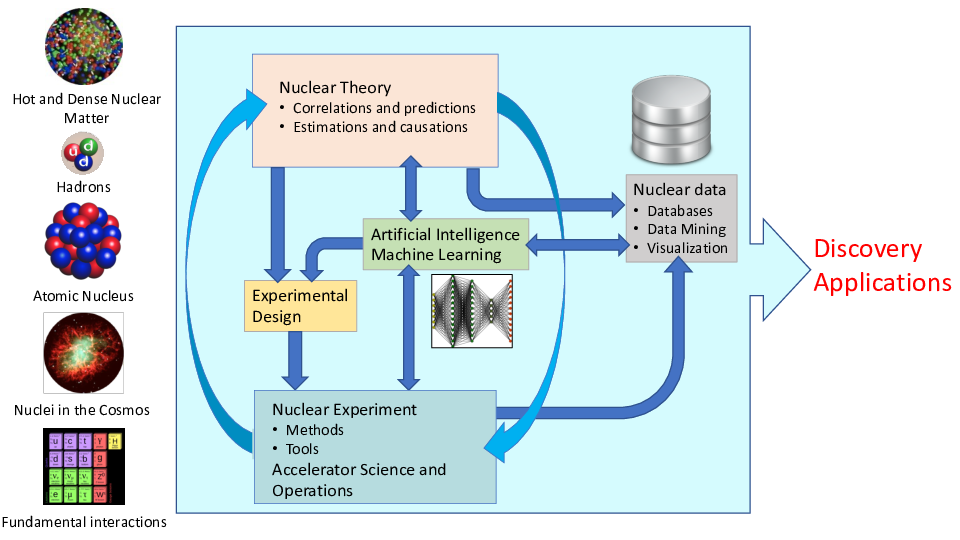

How can we use ML in Nuclear Science?











Possible start to raise awareness about ML in our field











Villa Tambosi, summer 1995, Tempus Fugit (sadly)















Quantum computing, Overview and Motivation

How to use many-body theory to design quantum circuits (Quantum engineering)
  1. Many-body methods like F(ull)C(onfiguration)I(nteraction) theory with
  2. Finding optimal parameters for tuning of entanglement
  3. Numerical experiments to mimick real systems, using many-body methods to develop quantum twins (inspiration from work by Herschel Rabitz et al on Control of quantum phenomena, see New Journal of Physics 12 (2010) 075008)!










What is this about?

Here we describe a method for generating motional entanglement between two electrons trapped above the surface of superfluid helium. In this proposed scheme these electronic charge qubits are laterally confined via electrostatic gates to create an anharmonic trapping potential. When the system is cooled to sufficiently low temperature these in-plane charge qubit states are quantized and circuit quantum electrodynamic methods can be used to control and readout single qubit operations. Perspectives for quantum simulations with quantum dots systems will be discussed.











Literature and more reading

  1. Justyna P. Zwolak and Jacob M. Taylor, Rev. Mod. Phys. 95, 011006, Advances in automation of quantum dot devices control
  2. Pollanen and many other, Accelerating Progress Towards Practical Quantum Advantage: The Quantum Technology Demonstration Project Roadmap
  3. Osada et al, introduction to quantum technologies, Springer, 2022
  4. Original inspiration a series of articles of Loss and DiVincenzo from the nineties, Quantum Computation with Quantum Dots










Quantum Engineering

Quantum computing requirements

  1. be scalable
  2. have qubits that can be entangled
  3. have reliable initializations protocols to a standard state
  4. have a set of universal quantum gates to control the quantum evolution
  5. have a coherence time much longer than the gate operation time
  6. have a reliable read-out mechanism for measuring the qubit states
  7. ...more










Candidate systems

  1. Superconducting Josephon junctions
  2. Single photons
  3. Trapped ions and atoms
  4. Nuclear Magnetic Resonance
  5. Quantum dots, experiments at MSU
  6. Point Defects in semiconductors
  7. ...more

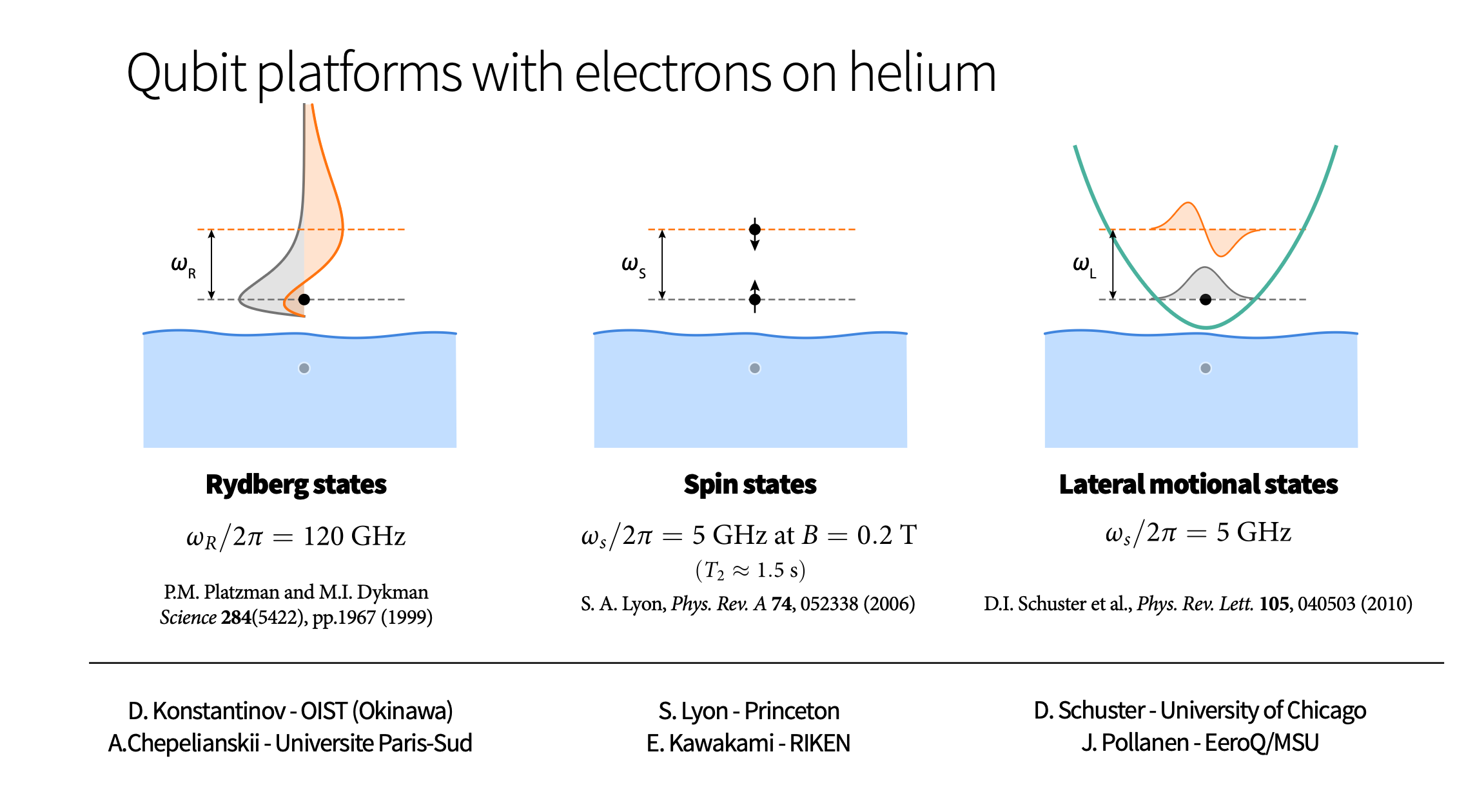

Electrons (quantum dots) on superfluid helium

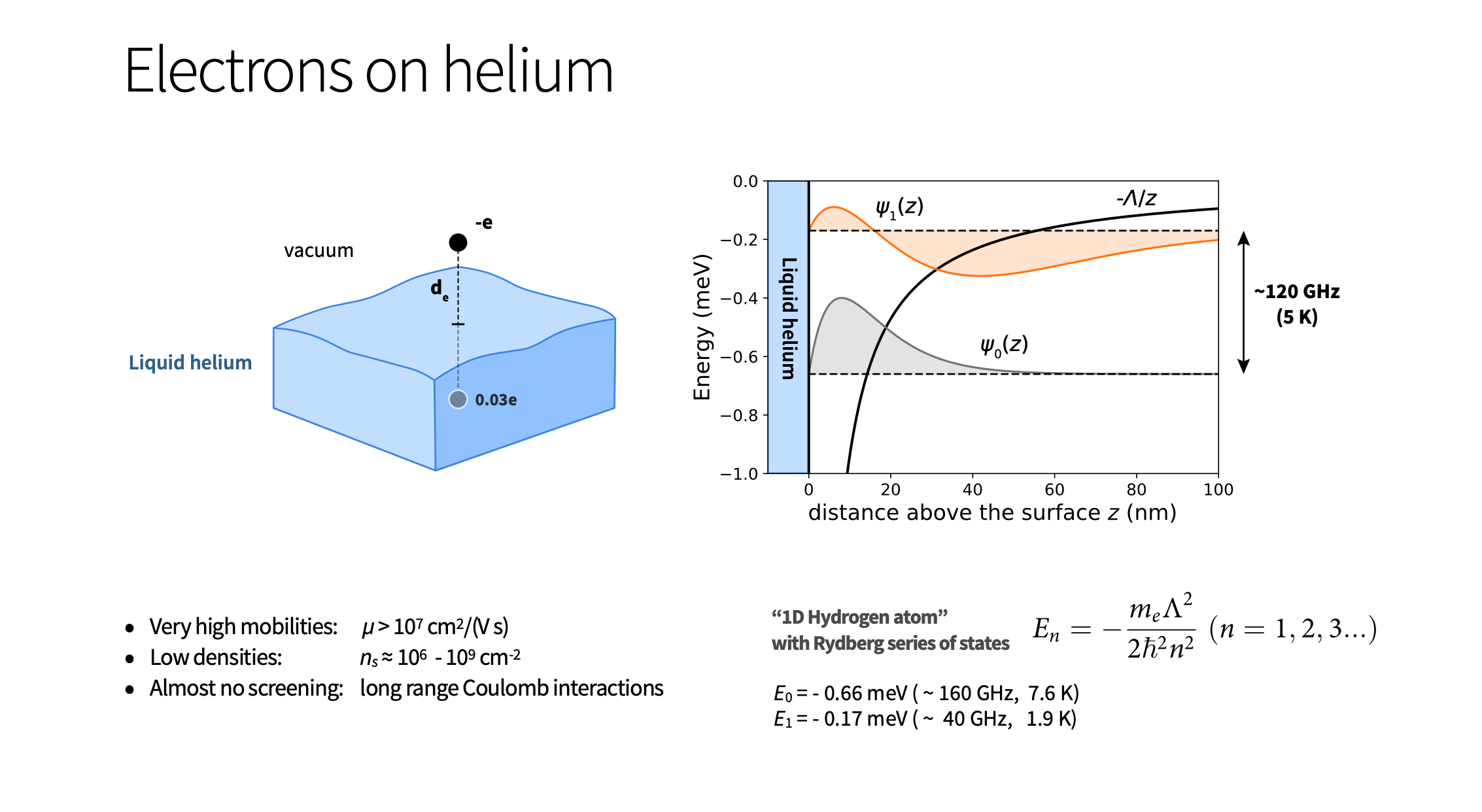

Electrons on superfluid helium represent (see https://www.youtube.com/watch?v=EuDuM-fe-lA&ab_channel=JoshuahHeath) a promising platform for investigating strongly-coupled qubits.

A systematic investigation of the controlled generation of entanglement between two trapped electrons under the influence of coherent microwave driving pulses, taking into account the effects of the Coulomb interaction between electrons, may be of great interest for quantum information processing using trapped electrons.











To read more

  1. See Single electrons on solid neon as a solid-state qubit platform, David Schuster et al, Nature 605, 46–50 (2022)
  2. See Mark Dykman et al, Spin dynamics in quantum dots on liquid helium, PRB 107. 035437 (2023) at https://link.aps.org/doi/10.1103/PhysRevB.107.035437.










Experimental setup I















More on experimental setup II















More on experimental setup III















Experimental set up





  1. (a) Schematic of the microdevice, where two electrons are trapped in a double-well potential created by electrodes 1-7. The read-out is provided by two superconducting resonators dispersively coupled to electron's in-plane motional states.
  2. (b) Coupling constants from each individual electrode beneath the helium layer.

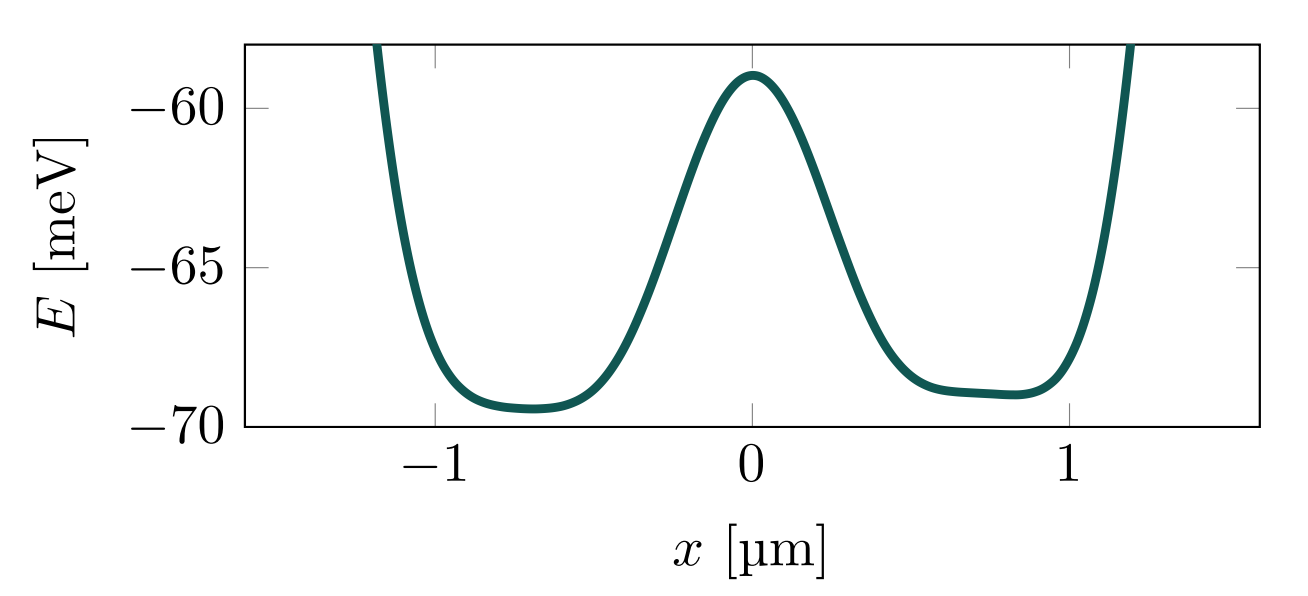

  3. (c+d) The electron's energy in a double-well electrostatic potential (solid line). Dashed and dot-dashed lines represent the harmonic approximations of left and right wells respectively.










Entanglement

Entanglement is the fundamental characteristic that distinguishes quantum systems composed of two or more coupled objects from their classical counterparts. The study of entanglement in precisely engineered quantum systems with countably many degrees of freedom is at the forefront of modern physics and is a key resource in quantum information science (QIS). This is particularly true in the development of two-qubit logic for quantum computation.

The generation of two-qubit entanglement has been demonstrated in a wide variety of physical systems used in present-day quantum computing, including superconducting circuits, trapped ions, semiconductor quantum dots, color-center defects in diamond, and neutral atoms in optical lattices, just to name a few.











More on Entanglement

Generating an entanglement between two quantum systems rely on exploiting interactions in a controllable way. The details in the interaction Hamiltonian between two systems defines the protocol schemes for two-qubit logic.

In superconducting circuits the interaction between qubits may arise from direct capacitive coupling between circuit elements or by indirect coupling of two qubits to a common resonator (virtually populating resonator mode) which results in a non-local Hamiltonian in the form of exchange interaction. This allow to implement various schemes for entanglement, such as controlled-phase gate, resonator-induced phase gate, cross-resonance gates etc.











Entanglement gates in trapped ions and more

Entanglement gates in trapped ions are produced by means of the Coulomb interaction, where shared motional modes of two or more ions, entangled to their internal states, used for transferring excitations between ion qubits. This has been experimentally demonstrated.

In photonic quantum computing schemes two-qubit entangling operations are realized by nonlinear interactions between two photons scattering from quantum dots, plasmonic nanowires, diamond vacancy centers and others embedded into waveguides. Two-qubit gates in semiconductor quantum dots are based on spin-spin exchange interactions or generated by coupling to a superconducting resonator via artificial spin-orbit interaction.











Quantum dots and the Coulomb interaction

Coulomb interaction governed entanglement can be realized in the system of electrons on the surface of superfluid helium, where qubit states are formed by in-plane lateral motional or out-of plane Rydberg states. Trapped near the surface of liquid helium these states have different spatial charge configurations and the wavefunctions of different electrons do not overlap.

This results in a strong exchange free Coulomb interaction which depends on the states of the electrons. The lack of disorder in the systems also leads to slow electron decoherence, which has attracted interest to the system as a candidate for quantum information processing.











Electrons on helium is another qubit platform

To our knowledge two qubit gates have never been discussed in a proper manner for these systems.

The static Coulomb interaction arises from a virtual photon exchange process between two charge particles according to quantum electrodynamics. This results in a correlated motion of two charges generating quantum entanglement.











Surface state electrons (SSE)

Surface state electrons (SSE) 'floating' above liquid helium originates from quantization of electron's perpendicular to the surface motion in a trapping potential formed by attractive force from image charge and a large \( \sim \) 1 eV barrier at the liquid-vacuum interface. At low temperatures the SSE are trapped in the lowest Rydberg state for vertical motion some 11 nm above the helium surface, which is perfectly clean and has a permittivity close to that of vacuum.

The weak interaction with rthe enviroment, which is mainly governed by interaction with quantized surface capillary waves (ripplons) and bulk phonons, ensures long coherence times - a vital ingredient for any qubit platform.











Calculational details

Hamiltonian:

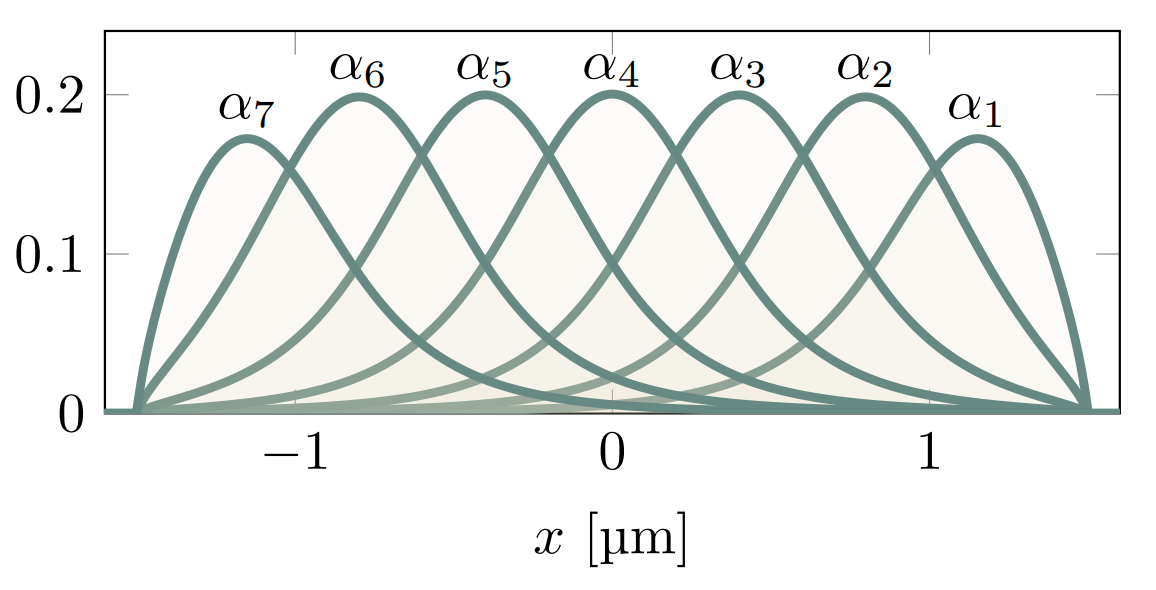

$$ \begin{align} \hat{H} &=\frac{\hat{p}_1^2}{2} + \sum_{i = 1}^7 V_i\alpha_i[\hat{x}_1] + \frac{\hat{p}_2^2}{2} + \sum_{i = 1}^7 V_i\alpha_i[\hat{x}_2] + \frac{\kappa}{\sqrt{(\hat{x}_1-\hat{x}_2)^2 + a^2}} \label{_auto3}\\ &= h[\hat{p}_1,\hat{x}_1] + h[\hat{p}_2,\hat{x}_2] + u[\hat{x}_1,\hat{x}_2] \label{_auto4} \end{align} $$













Calculational details

Hamiltonian:

$$ \begin{align} \hat{H} &= \frac{\hat{p}_1^2}{2} + v[\hat{x}_1] + \frac{\hat{p}_2^2}{2} + v[\hat{x}_2] + \frac{\kappa}{\sqrt{(\hat{x}_1-\hat{x}_2)^2 + a^2}} \label{_auto5}\\ &= h[\hat{p}_1,\hat{x}_1] + h[\hat{p}_2,\hat{x}_2] + u[\hat{x}_1,\hat{x}_2] \label{_auto6} \end{align} $$













Calculational details

Hamiltonian:

$$ \begin{align} \hat{H} &= \frac{\hat{p}_1^2}{2} + v[\hat{x}_1] + \frac{\hat{p}_2^2}{2} + v[\hat{x}_2] + \frac{\kappa}{\sqrt{(\hat{x}_1-\hat{x}_2)^2 + a^2}} \label{_auto7}\\ &\equiv h[\hat{p}_1,\hat{x}_1] + h[\hat{p}_2,\hat{x}_2] + u[\hat{x}_1,\hat{x}_2] \label{_auto8} \end{align} $$

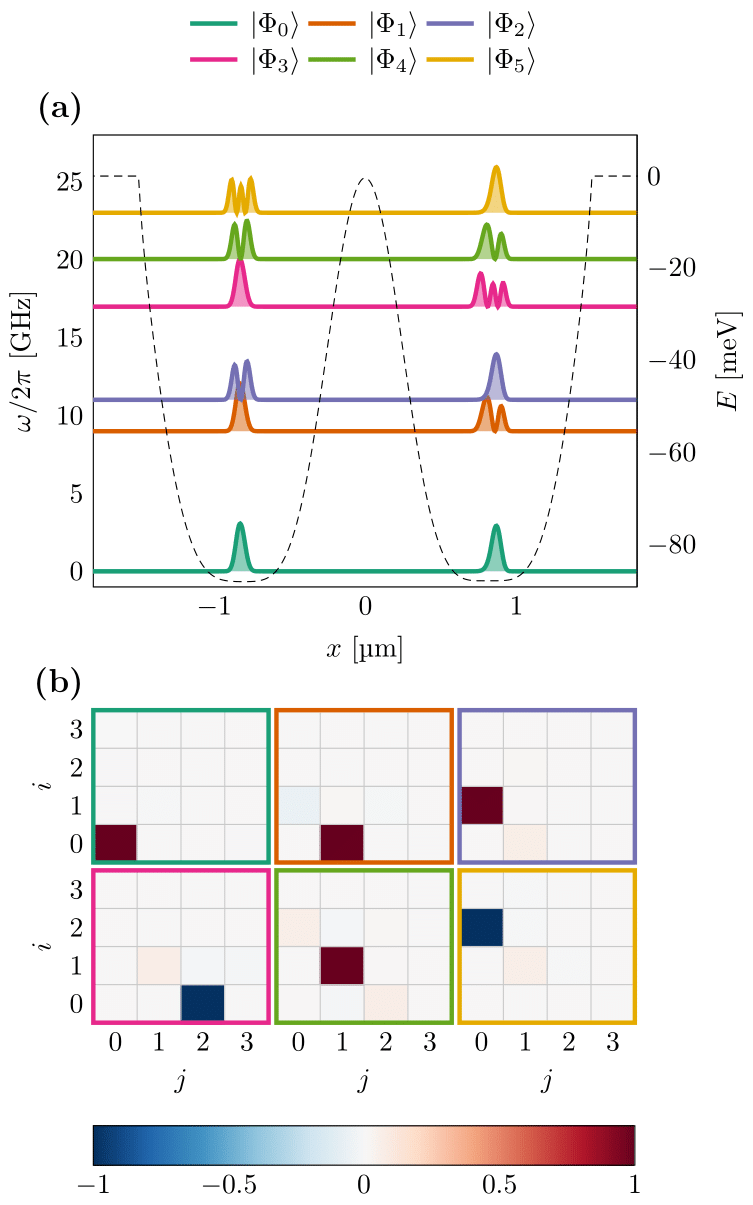

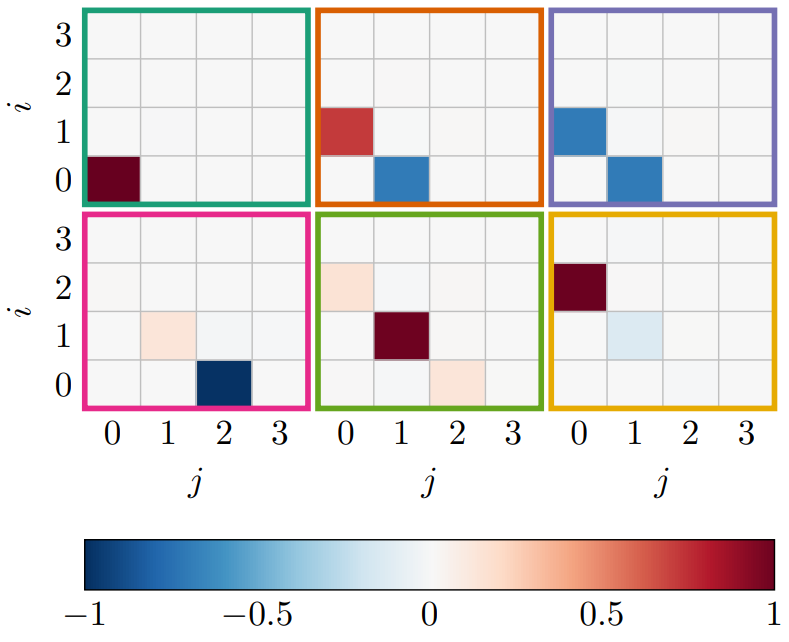

Energy states:

$$ \begin{equation} \vert\Phi_k\rangle = \sum_{i < j} C_{ij, k}\frac{\vert \varphi_i \varphi_j\rangle - \vert \varphi_j \varphi_i\rangle}{\sqrt{2}}, \label{_auto9} \end{equation} $$

(Slater basis)











Calculational details

Hamiltonian:

$$ \begin{align} \hat{H} &= \frac{\hat{p}_1^2}{2} + v^L[\hat{x}_1] + \frac{\hat{p}_2^2}{2} + v^R[\hat{x}_2] + \frac{\kappa}{\sqrt{(\hat{x}_1-\hat{x}_2)^2 + a^2}} \label{_auto10}\\ &\equiv h^L[\hat{p}_1,\hat{x}_1] + h^R[\hat{p}_2,\hat{x}_2] + u[\hat{x}_1,\hat{x}_2] \label{_auto11} \end{align} $$

Energy states:

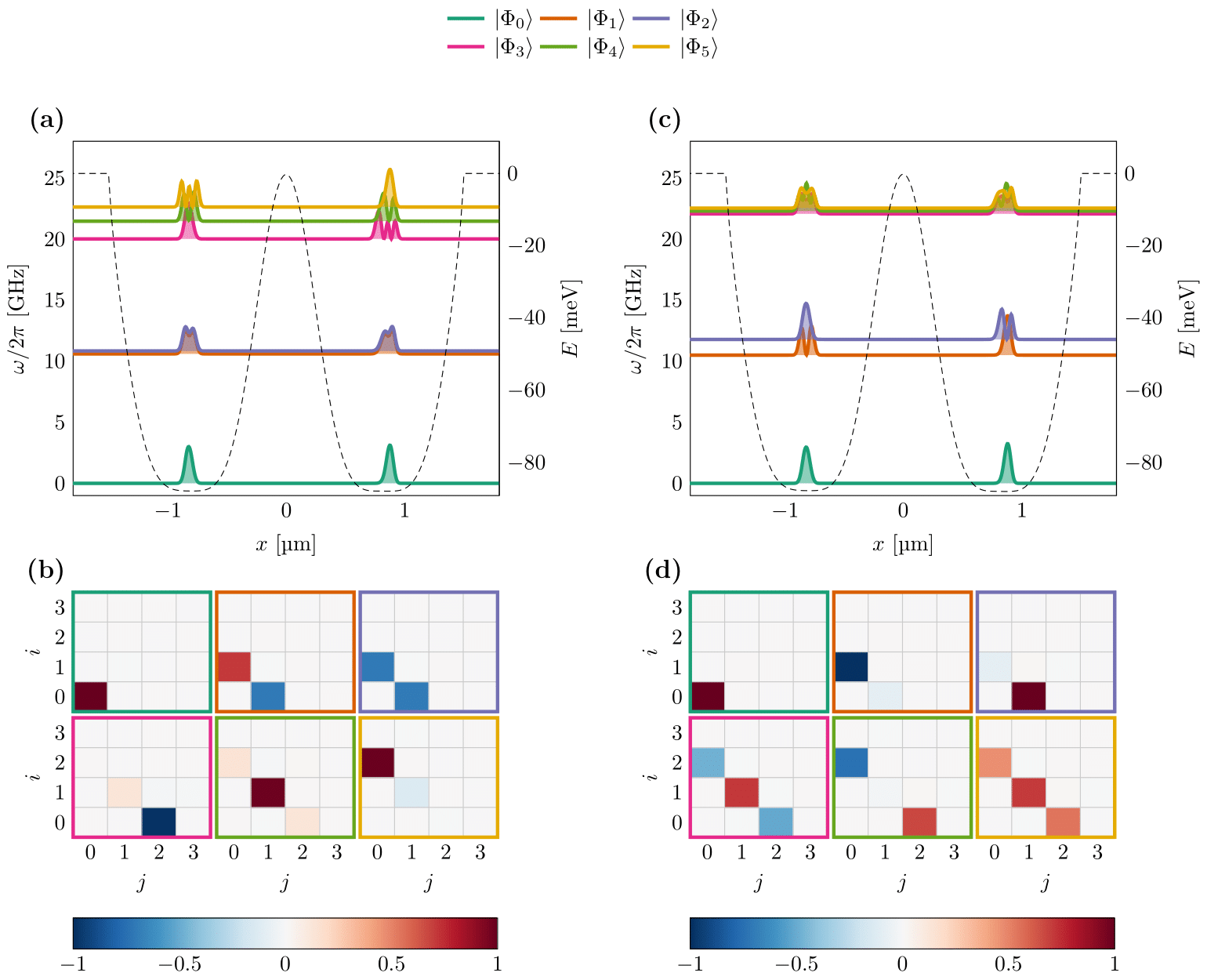

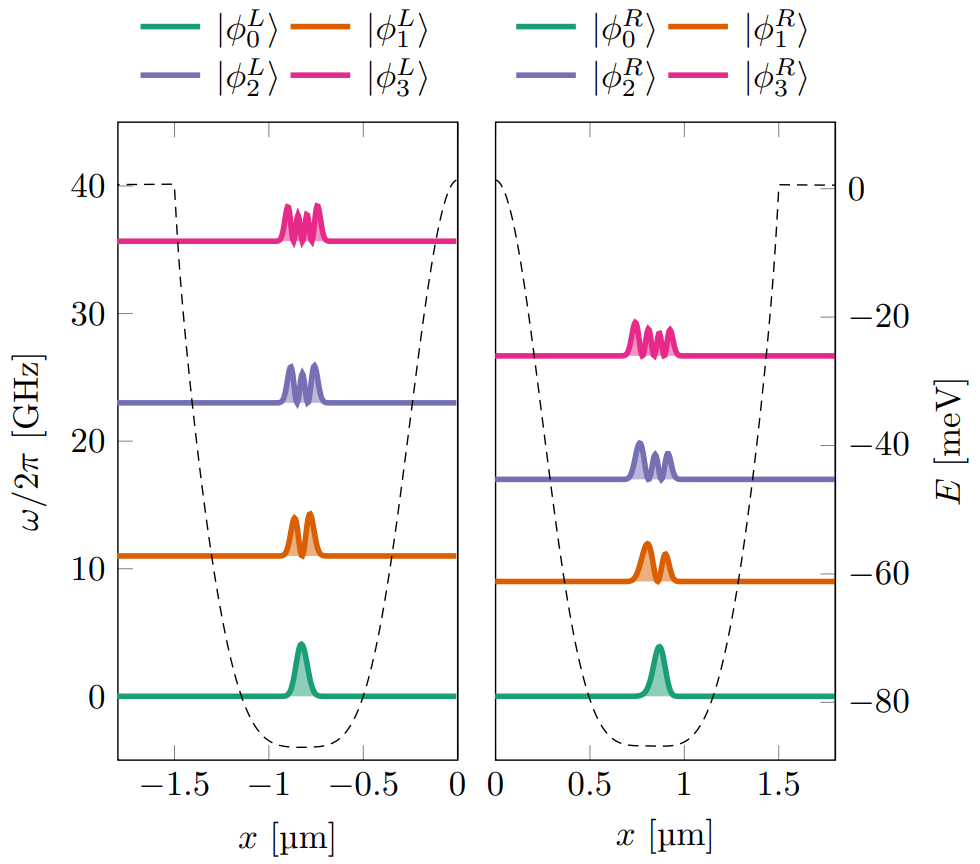

$$ \begin{equation} \vert\Phi_k\rangle = \sum_{i} \sum_{j} C_{ij, k}\vert \varphi^L_i \varphi^R_j\rangle, \label{_auto12} \end{equation} $$

(product basis)











Calculational details

Energy states:

$$ \begin{equation} \vert\Phi_k\rangle = \sum_{i} \sum_{j} C_{ij, k}\vert \varphi^L_i \varphi^R_j\rangle, \label{_auto13} \end{equation} $$

(product basis)















Calculational details

Hamiltonian:

$$ \begin{align} \hat{H} &= \frac{\hat{p}_1^2}{2} + v^L[\hat{x}_1] + \frac{\hat{p}_2^2}{2} + v^R[\hat{x}_2] + \frac{\kappa}{\sqrt{(\hat{x}_1-\hat{x}_2)^2 + a^2}} \label{_auto14}\\ &\equiv h^L[\hat{p}_1,\hat{x}_1] + h^R[\hat{p}_2,\hat{x}_2] + u[\hat{x}_1,\hat{x}_2] \label{_auto15} \end{align} $$

Energy states:

$$ \begin{equation} \vert\Phi_k\rangle = \sum_{i} \sum_{j} C_{ij, k}\vert \varphi^L_i \varphi^R_j\rangle, \label{_auto16} \end{equation} $$

(Hartree basis)











Calculational details

Hamiltonian:

$$ \begin{align} \hat{H} &= \frac{\hat{p}_1^2}{2} + v^L[\hat{x}_1] + \frac{\hat{p}_2^2}{2} + v^R[\hat{x}_2] + \frac{\kappa}{\sqrt{(\hat{x}_1-\hat{x}_2)^2 + a^2}} \label{_auto17}\\ &\equiv h^L[\hat{p}_1,\hat{x}_1] + h^R[\hat{p}_2,\hat{x}_2] + u[\hat{x}_1,\hat{x}_2] \label{_auto18} \end{align} $$

Energy states:

$$ \begin{equation} \vert\Phi_k\rangle = \sum_{i = 0}^{N^L} \sum_{j = 0}^{N^R} C_{ij, k}\vert \varphi^L_i \varphi^R_j\rangle, \label{_auto19} \end{equation} $$

(Hartree basis)











Calculational details

Energy states:

$$ \begin{equation} \vert\Phi_k\rangle = \sum_{i = 0}^{N^L} \sum_{j = 0}^{N^R} C_{ij, k}\vert \varphi^L_i \varphi^R_j\rangle, \label{_auto20} \end{equation} $$

(Hartree basis)















Calculational details

Hamiltonian:

$$ \begin{align} \hat{H} &= \frac{\hat{p}_1^2}{2} + v^L[\hat{x}_1] + \frac{\hat{p}_2^2}{2} + v^R[\hat{x}_2] + \frac{\kappa}{\sqrt{(\hat{x}_1-\hat{x}_2)^2 + a^2}} \label{_auto21}\\ &\equiv h^L[\hat{p}_1,\hat{x}_1] + h^R[\hat{p}_2,\hat{x}_2] + u[\hat{x}_1,\hat{x}_2] \label{_auto22} \end{align} $$

Energy states:

$$ \begin{equation} \vert\Phi_k\rangle = \sum_{i = 0}^{N^L} \sum_{j = 0}^{N^R} C_{ij, k}\vert \varphi^L_i \varphi^R_j\rangle, \label{_auto23} \end{equation} $$

(Hartree basis)











Results and discussions

By adjusting the potential we can change the anharmonicities and detuning of the wells.

  1. What values of these give interesting interactions?
  2. Inspiration from superconducting qubits, see High-Contrast \( ZZ \) Interaction Using Superconducting Qubits with Opposite-Sign Anharmonicity, Zhao et al Phys. Rev. Lett. 125, 200503










We search for well configurations corresponding to three different types of interaction between the two electrons.

  1. In configuration I we address both qubits independently and can thereby perform single-qubit state rotations and measurements.
  2. Configurations II and III correspond to avoided level crossings between two (\( E_{01}, E_{10} \)) and three (\( E_{11}, E_{20}, E_{02} \)) energy levels respectively, where the electrons' motion becomes correlated, that is they are entangled.

Both anharmonicity and detuning changes with the shape of our well. We create a voltage parameterization

$$ \begin{equation} V(\lambda) = (1-\lambda)V_\mathrm{I} + \lambda V_\mathrm{III} \label{_auto24} \end{equation} $$









Entanglement and more















Legend to figure

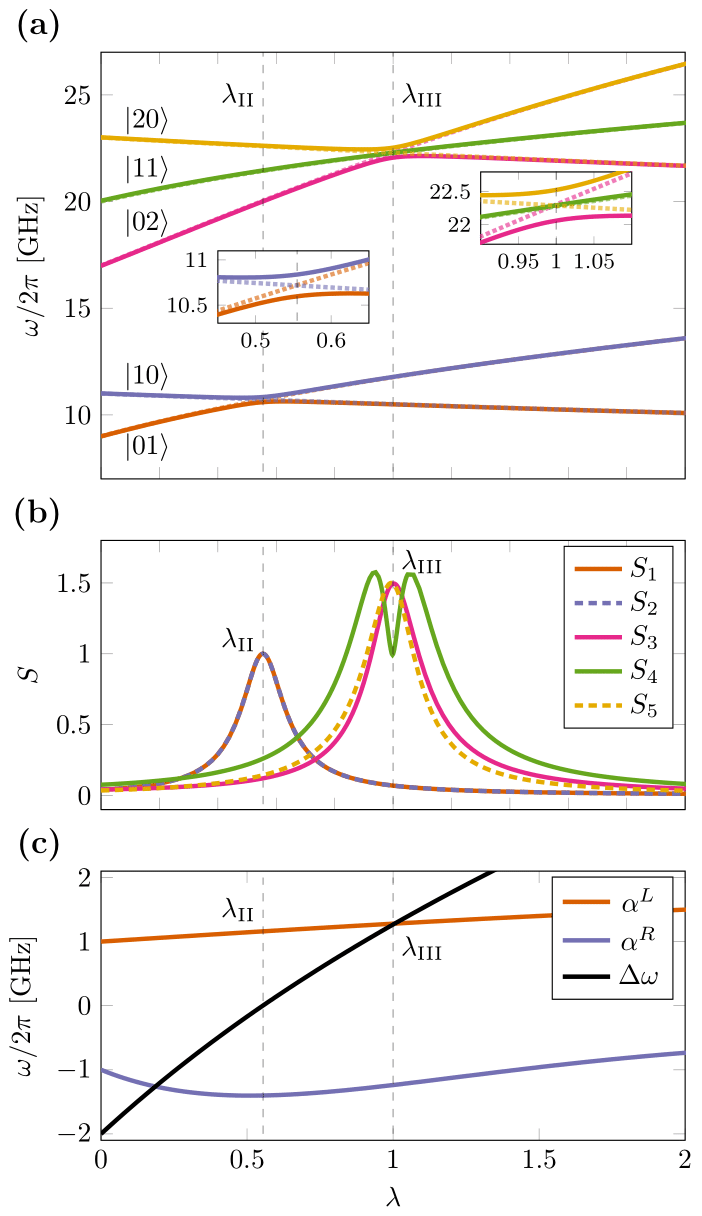

  1. (a) In this figure we have plotted the transition energy from the ground state to the labeled excited state as a function of the voltage parameter \( \lambda \). The labeled states are the computational basis states when \( \lambda = 0 \).
  2. (b) The von Neumann entropy of the five lowest excited states of the two-body Hamiltonian as a function of the configuration parameter \( \lambda \). The ground state has zero entropy, or close to zero entropy. We have included the points for the double and triple degeneracy points. \( \lambda_{II} \) and \( \lambda_{III} \) in the figure. The von Neumann entropy is calculated using the binary logarithm.
  3. (c) In this figure we have plotted the anharmonicites for the left well (\( \alpha^L \)) and the right well (\( \alpha^R \)) as a function of the well parameterization \( \lambda \). We have also included the detuning \( \Delta \omega = \omega^R - \omega^L \) between the two wells. We have marked configuration II at \( \lambda_{II} \approx 0.554 \) and configuration III at \( \lambda_{III} = 1 \).










Particle densities and coefficients















Potential wells, the one-body densities, and single-particle states















Where we are now

  1. Adding time-dependent studies of two electrons in two wells in one and two dimensions
  2. Studies of the time-evolution of entangled states (now two electrons only)
  3. Use theory to find optimal experimental setup
  4. Expect two-electron system realized experimentally in approx \( 1 \) year, great potential for studies of quantum simulations










Plans

  1. Add two and three-dimensions in order to simulate in a more realistic way such many-body systems.
  2. Develop time-dependent FCI code, useful up to approximately 10 particles with effective (and effective Hilbert space) Hamiltonians in two and three dimensions
  3. Develop codes for studies of entanglement as function of time
  4. Do tomogrophy and extract density matrix and compare with experiment.
  5. Study the feasibility of various setups for quantum simulations of specific Hamiltonians such as the Lipkin model
  6. For larger many-body systems, study for example time-dependent CC theory










Addendum: Quantum Monte Carlo Motivation

Given a hamiltonian \( H \) and a trial wave function \( \Psi_T \), the variational principle states that the expectation value of \( \langle H \rangle \), defined through

$$ \langle E \rangle = \frac{\int d\boldsymbol{R}\Psi^{\ast}_T(\boldsymbol{R})H(\boldsymbol{R})\Psi_T(\boldsymbol{R})} {\int d\boldsymbol{R}\Psi^{\ast}_T(\boldsymbol{R})\Psi_T(\boldsymbol{R})}, $$

is an upper bound to the ground state energy \( E_0 \) of the hamiltonian \( H \), that is

$$ E_0 \le \langle E \rangle. $$

In general, the integrals involved in the calculation of various expectation values are multi-dimensional ones. Traditional integration methods such as the Gauss-Legendre will not be adequate for say the computation of the energy of a many-body system.











Quantum Monte Carlo Motivation

Basic steps

Choose a trial wave function \( \psi_T(\boldsymbol{R}) \).

$$ P(\boldsymbol{R},\boldsymbol{\alpha})= \frac{\left|\psi_T(\boldsymbol{R},\boldsymbol{\alpha})\right|^2}{\int \left|\psi_T(\boldsymbol{R},\boldsymbol{\alpha})\right|^2d\boldsymbol{R}}. $$

This is our model, or likelihood/probability distribution function (PDF). It depends on some variational parameters \( \boldsymbol{\alpha} \). The approximation to the expectation value of the Hamiltonian is now

$$ \langle E[\boldsymbol{\alpha}] \rangle = \frac{\int d\boldsymbol{R}\Psi^{\ast}_T(\boldsymbol{R},\boldsymbol{\alpha})H(\boldsymbol{R})\Psi_T(\boldsymbol{R},\boldsymbol{\alpha})} {\int d\boldsymbol{R}\Psi^{\ast}_T(\boldsymbol{R},\boldsymbol{\alpha})\Psi_T(\boldsymbol{R},\boldsymbol{\alpha})}. $$










Quantum Monte Carlo Motivation

Define a new quantity

$$ E_L(\boldsymbol{R},\boldsymbol{\alpha})=\frac{1}{\psi_T(\boldsymbol{R},\boldsymbol{\alpha})}H\psi_T(\boldsymbol{R},\boldsymbol{\alpha}), $$

called the local energy, which, together with our trial PDF yields

$$ \langle E[\boldsymbol{\alpha}] \rangle=\int P(\boldsymbol{R})E_L(\boldsymbol{R},\boldsymbol{\alpha}) d\boldsymbol{R}\approx \frac{1}{N}\sum_{i=1}^NE_L(\boldsymbol{R_i},\boldsymbol{\alpha}) $$

with \( N \) being the number of Monte Carlo samples.











The trial wave function

We want to perform a Variational Monte Carlo calculation of the ground state of two electrons in a quantum dot well with different oscillator energies, assuming total spin \( S=0 \). Our trial wave function has the following form

$$ \begin{equation} \psi_{T}(\boldsymbol{r}_1,\boldsymbol{r}_2) = C\exp{\left(-\alpha_1\omega(r_1^2+r_2^2)/2\right)} \exp{\left(\frac{r_{12}}{(1+\alpha_2 r_{12})}\right)}, \label{eq:trial} \end{equation} $$

where the variables \( \alpha_1 \) and \( \alpha_2 \) represent our variational parameters.

Why does the trial function look like this? How did we get there? This is one of our main motivations for switching to Machine Learning.











The correlation part of the wave function

To find an ansatz for the correlated part of the wave function, it is useful to rewrite the two-particle local energy in terms of the relative and center-of-mass motion. Let us denote the distance between the two electrons as \( r_{12} \). We omit the center-of-mass motion since we are only interested in the case when \( r_{12} \rightarrow 0 \). The contribution from the center-of-mass (CoM) variable \( \boldsymbol{R}_{\mathrm{CoM}} \) gives only a finite contribution. We focus only on the terms that are relevant for \( r_{12} \) and for three dimensions. The relevant local energy operator becomes then (with \( l=0 \))

$$ \lim_{r_{12} \rightarrow 0}E_L(R)= \frac{1}{{\cal R}_T(r_{12})}\left(-2\frac{d^2}{dr_{ij}^2}-\frac{4}{r_{ij}}\frac{d}{dr_{ij}}+ \frac{2}{r_{ij}}\right){\cal R}_T(r_{12}). $$

In order to avoid divergencies when \( r_{12}\rightarrow 0 \) we obtain the so-called cusp condition

$$ \frac{d {\cal R}_T(r_{12})}{dr_{12}} = \frac{1}{2} {\cal R}_T(r_{12})\qquad r_{12}\to 0 $$









Resulting ansatz

The above results in

$$ {\cal R}_T \propto \exp{(r_{ij}/2)}, $$

for anti-parallel spins and

$$ {\cal R}_T \propto \exp{(r_{ij}/4)}, $$

for anti-parallel spins. This is the so-called cusp condition for the relative motion, resulting in a minimal requirement for the correlation part of the wave fuction. For general systems containing more than say two electrons, we have this condition for each electron pair \( ij \).











Energy derivatives

To find the derivatives of the local energy expectation value as function of the variational parameters, we can use the chain rule and the hermiticity of the Hamiltonian.

Let us define (with the notation \( \langle E[\boldsymbol{\alpha}]\rangle =\langle E_L\rangle \))

$$ \bar{E}_{\alpha_i}=\frac{d\langle E_L\rangle}{d\alpha_i}, $$

as the derivative of the energy with respect to the variational parameter \( \alpha_i \) We define also the derivative of the trial function (skipping the subindex \( T \)) as

$$ \bar{\Psi}_{i}=\frac{d\Psi}{d\alpha_i}. $$










Derivatives of the local energy

The elements of the gradient of the local energy are then (using the chain rule and the hermiticity of the Hamiltonian)

$$ \bar{E}_{i}= 2\left( \langle \frac{\bar{\Psi}_{i}}{\Psi}E_L\rangle -\langle \frac{\bar{\Psi}_{i}}{\Psi}\rangle\langle E_L \rangle\right). $$

From a computational point of view it means that you need to compute the expectation values of

$$ \langle \frac{\bar{\Psi}_{i}}{\Psi}E_L\rangle, $$

and

$$ \langle \frac{\bar{\Psi}_{i}}{\Psi}\rangle\langle E_L\rangle $$

These integrals are evaluted using MC intergration (with all its possible error sources). We can then use methods like stochastic gradient or other minimization methods to find the optimal variational parameters (I don't discuss this topic here, but these methods are very important in ML).











How do we define our cost function?

We have a model, our likelihood function.

How should we define the cost function?











Meet the variance and its derivatives

Why the variance?

Suppose the trial function (our model) is the exact wave function. The action of the hamiltionan on the wave function

$$ H\Psi = \mathrm{constant}\times \Psi, $$

The integral which defines various expectation values involving moments of the hamiltonian becomes then

$$ \langle E^n \rangle = \langle H^n \rangle = \frac{\int d\boldsymbol{R}\Psi^{\ast}(\boldsymbol{R})H^n(\boldsymbol{R})\Psi(\boldsymbol{R})} {\int d\boldsymbol{R}\Psi^{\ast}(\boldsymbol{R})\Psi(\boldsymbol{R})}= \mathrm{constant}\times\frac{\int d\boldsymbol{R}\Psi^{\ast}(\boldsymbol{R})\Psi(\boldsymbol{R})} {\int d\boldsymbol{R}\Psi^{\ast}(\boldsymbol{R})\Psi(\boldsymbol{R})}=\mathrm{constant}. $$ This gives an important information: If I want the variance, the exact wave function leads to zero variance!

The variance is defined as

$$ \sigma_E = \langle E^2\rangle - \langle E\rangle^2. $$

Variation is then performed by minimizing both the energy and the variance.











The variance defines the cost function

We can then take the derivatives of

$$ \sigma_E = \langle E^2\rangle - \langle E\rangle^2, $$

with respect to the variational parameters. The derivatives of the variance can then be used to defined the so-called Hessian matrix, which in turn allows us to use minimization methods like Newton's method or standard gradient methods.

This leads to however a more complicated expression, with obvious errors when evaluating integrals by Monte Carlo integration. Less used, see however Filippi and Umrigar. The expression becomes complicated

$$ \begin{align} \bar{E}_{ij} &= 2\left[ \langle (\frac{\bar{\Psi}_{ij}}{\Psi}+\frac{\bar{\Psi}_{j}}{\Psi}\frac{\bar{\Psi}_{i}}{\Psi})(E_L-\langle E\rangle)\rangle -\langle \frac{\bar{\Psi}_{i}}{\Psi}\rangle\bar{E}_j-\langle \frac{\bar{\Psi}_{j}}{\Psi}\rangle\bar{E}_i\right] \label{_auto25}\\ \nonumber &+\langle \frac{\bar{\Psi}_{i}}{\Psi}E_L{_j}\rangle +\langle \frac{\bar{\Psi}_{j}}{\Psi}E_L{_i}\rangle -\langle \frac{\bar{\Psi}_{i}}{\Psi}\rangle\langle E_L{_j}\rangle \langle \frac{\bar{\Psi}_{j}}{\Psi}\rangle\langle E_L{_i}\rangle. \end{align} $$

Evaluating the cost function means having to evaluate the above second derivative of the energy.
